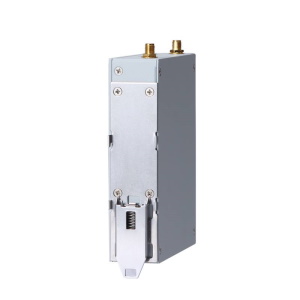

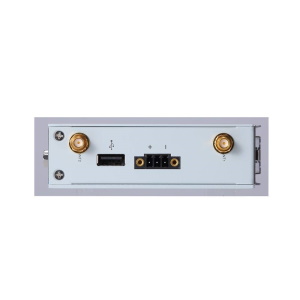

AIOT EDGE CONNECT 100 IOT Gateway

AIOT EDGE CONNECT 100 IOT Gateway is an edge IIoT gateway that comes default with Axview 3.0 ( a node red engineer) from Axiomtek or a Tesla IoT edge software engine that allows you to freely configure to talk to any device or controller. It is able to perform data manipulation and logic control and at the same time, it has a build in agent for you to publish to the AIOT Edge Connect Cloud platform.

Category:

Description

AEC100 IOT EDGE Cloud Enabled Gateway

Features

● Cost-effective with fanless and cableless design
● Intel® Celeron® processor N3350, reliable F1 stepping
version CPU
● 2 COM, 2 USB and  1x GbE LAN
● 8-bit programmable DIO for IoT gateway applications
● Wide operating temperature range from -20°C to +70°C
● 12 to 24 VDC wide range power input
● 4GB  Memory
● 64GB solid-state State Disk
● WIFI 2.4/5G – Dual Antenna ( optional LTE/4G)
● AIoT Edge Connect Cloud-enabled
● Communication protocol support: Modbus RTU, Modbus TCP, MQTT , OPC UA, Siemens PLC, Allen Bradley PLC, Omron PLC, Backnet
●  Default OS Linux / IoT software engine Teslascada IOT EDGE  Optional ( Node-Red)
