Description

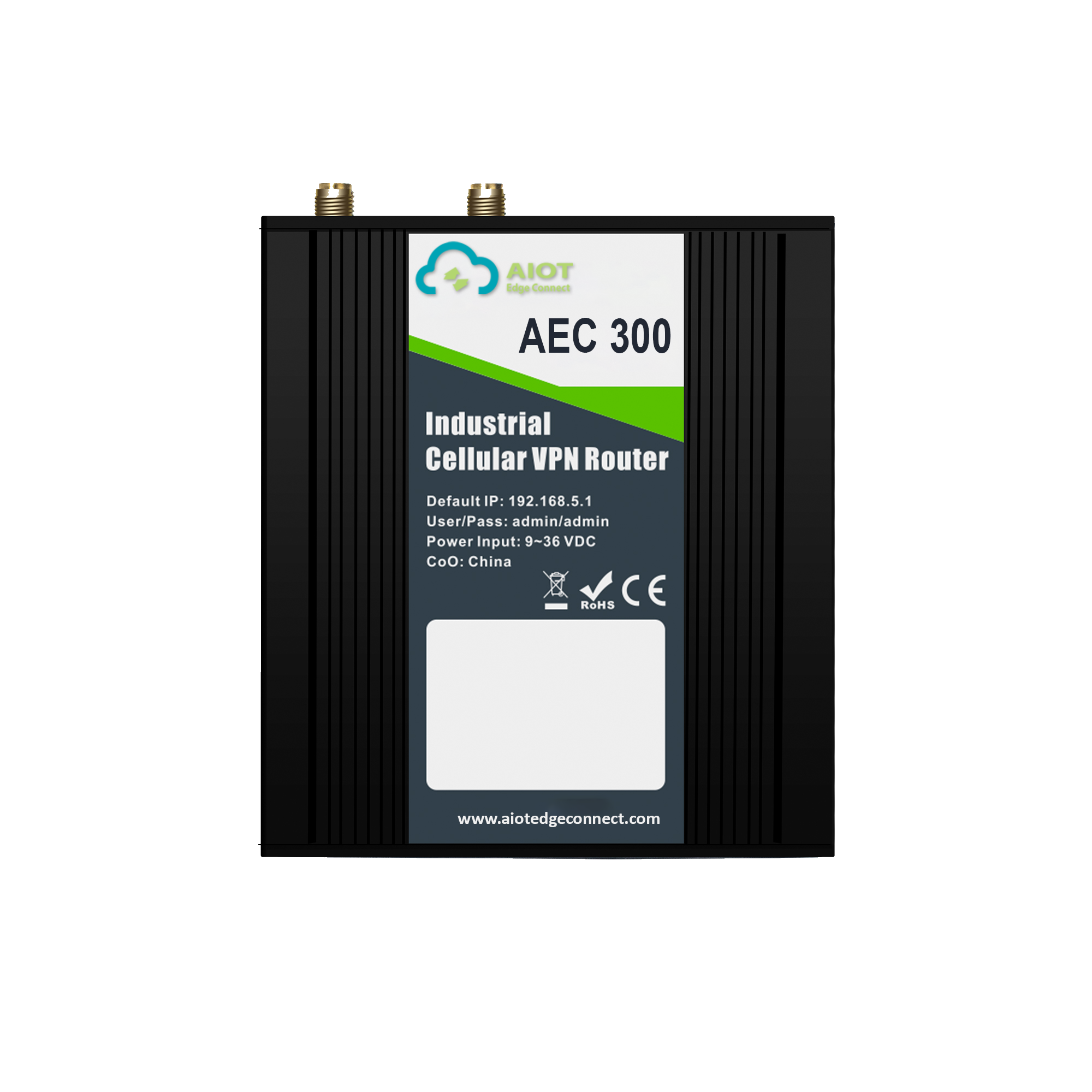

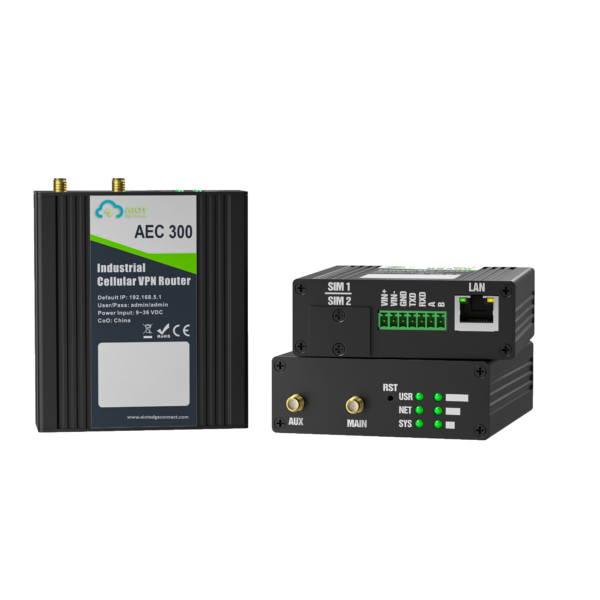

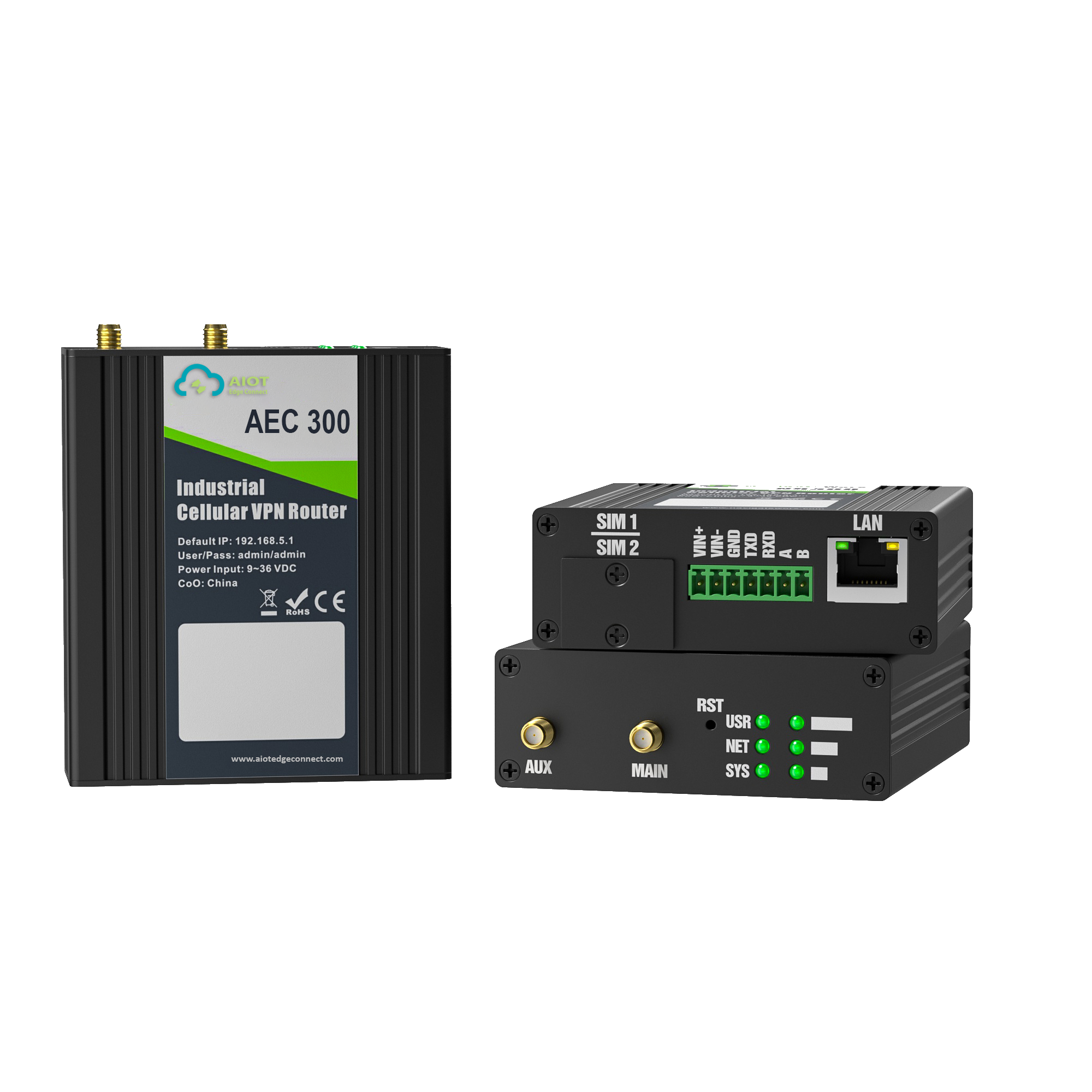

AEC300 a smarter 4G Gateway router
Industrial Internet access
• Wireless Mobile Broadband 2G / 3G / 4G Connection
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance
• Wireless Mobile Broadband 2G / 3G / 4G Connection
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance
• Cloud enable 4G router gateway support REst API and MQTT
Designed for industrial usage
• Power Input Range 9 to 36 VDC
• Industrial designed for harsh environment
• Aluminum casing
Secure and reliable remote connection
• Connection manager ensure seamless communication
• Support Multiple Encryption tunnels for data encryption
• Firewall prevents unsafe and unauthorized access
Easy to use and easy maintenance
• User-friendly web interface for human interaction
• Easy configuration for deployment
• Support Central Device Management Platform
Sepecification:
| ETHERNET | |
| Number of Ports | 1 x LAN |
| Port Type | Auto 10/100 Mbps auto MDI/MDIX |
| Magnet Isolation Protection | 1.5 KV |
| SERIAL | |

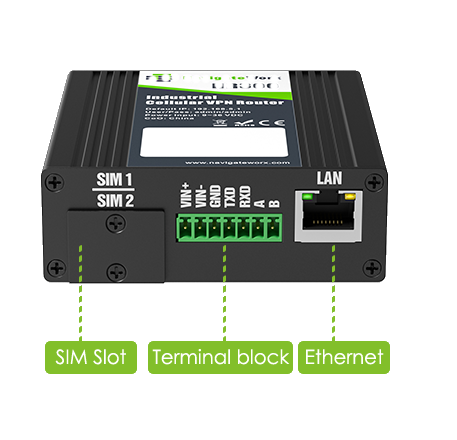

| Number of Ports | 1 x RS-232 (3 PIN) + 1 x RS-485 |
| Connector | Terminal block |
| ESD Protection | ± 15 KV |
| Band Rate | 300bps to 115200bps |
| NETWORK | |||
| Routing | Static routing | ||
| Dynamic Routing (Optional) | RIPv1/v2 OSPF BGP | ||
| Network Protocols | TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP PPP PPPoE DHCP | ||
| Connection Manager | Ping Detection Timer Reboot ICMP for link detection | ||
| DHCP | Static and dynamic IP allocation | ||
| DDNS | Supported some service providers others can be configured manually | ||
| Firewall | Flexible access control of TCP UDP ICMP packets MAC address filter | ||
| SMS |
SMS Configuration SMS Gateway SMS Notification
|
||
| VPN | |||
| OpenVPN |
OpenVPN client supports up to 5 x OpenVPN tunnels
|
||
| GRE |
layer2 and layer3 supports up to 5 x GRE VPN tunnels
|
||
| IPsec (Optional) |
IKEv1 IKEv2 supports up to 5 x IPsec VPN tunnels
|
||
| DMVPN (Optional) |
Dynamic Multipoint Virtual Private Networking DMVPN
|
||
|
P PTP/L2TP (Optional)
|
PPTP or Point to Point Tunneling Protocol and L2TP or layer 2 Tunneling Protocol (L2TP)
|
||
